Mobile Metal Mesh Seedbed, Plant Seedling Platform, Welded Wire Mesh Seedling Bed Manufacturers

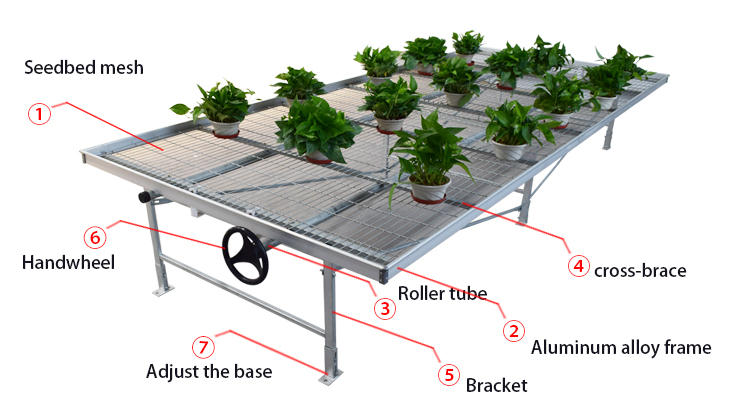

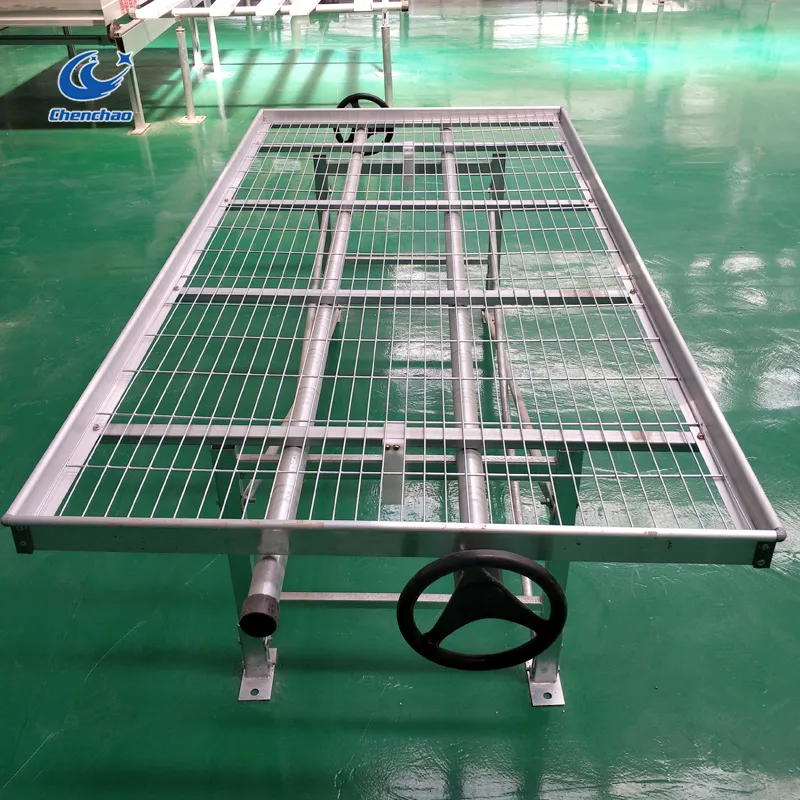

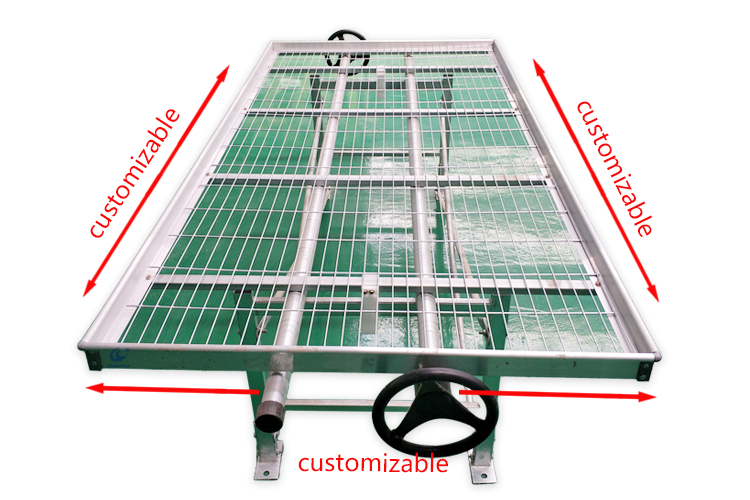

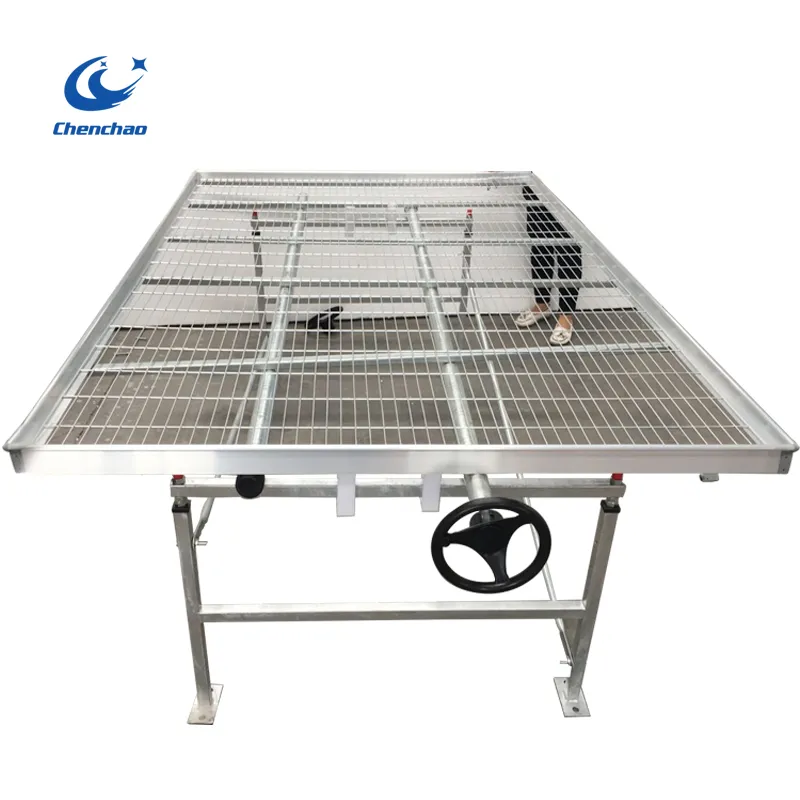

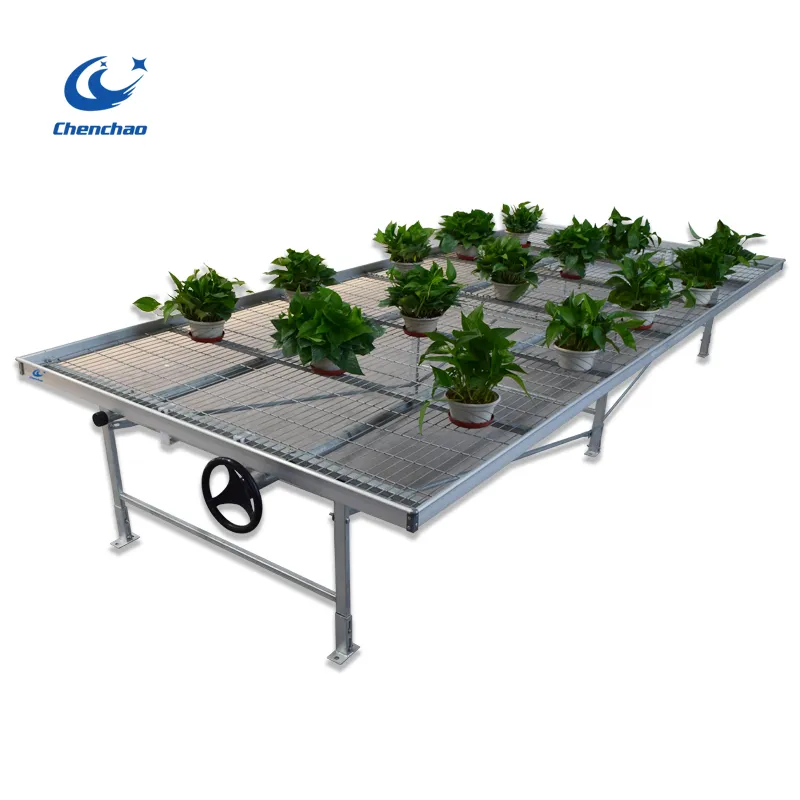

The ordinary mesh mobile Seedbed is mainly composed of seedbed mesh, aluminum alloy frame, roller tube, cross brace, bracket, handwheel, adjusting base, etc.
The seedbed net, bracket, and adjustment base are welded first and then galvanized, with a zinc coating of 70-80UM and a zinc coating of about 500g/square meter. They will not rust after 20 years of use in a Greenhouse environment. The rollers, beams, and diagonal braces are all hot-dip galvanized pipes, with a general service life of 10 years.
Product Specifications
Our product specifications are complete and rich We can also customize seedbeds of different specifications for customers Greenhouse equipment, etc.
Common wire diameter
3*3mm 3.2*3.5mm 4*3mm
Mesh size
120*25mm 130*30mm 125*50mm 50*50mm
Material
Galvanized metal
Height
60cm (can vary between 60-65cm)
Width
Maximum width of 2.5m, customizable according to customer requirements
Length
Maximum length of 30m, customizable according to customer needs
Load range
50 kilograms per square meter
Metal bench
7308900000
Product Advantages
The 6 major advantages of welding mesh mobile seedbed products have become the preferred solution for end customers.
1.The mesh structure enables better circulation of air and moisture in the seedbed Beneficial for seedling root respiration and water absorption Prevent water accumulation from causing root rot.
2.Made by welding high-quality steel wire or other high-strength materials A seedling that can withstand a certain weight Cultivation substrate and related equipment Has strong load-bearing capacity.
3.High quality hot-dip galvanized support, corrosion resistance, anti-aging, easy to deal with a variety of complex planting environment, so that the seedbed has a longer service life.
4.The flat surface and precise size of the net ensure the uniformity of the seedling growth environment, facilitating planting operations and management, and also facilitating mechanized operations.

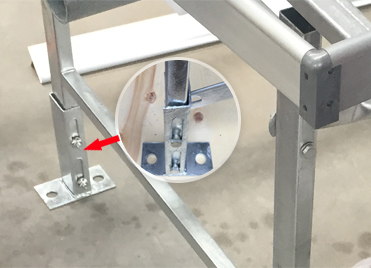

5.The height of the seedbed adjustment base can be adjusted, effectively improving its use in various scenarios.

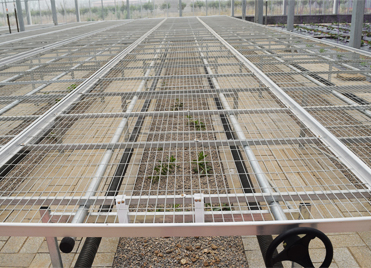

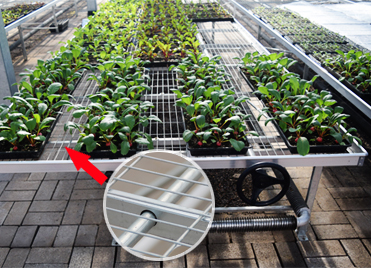

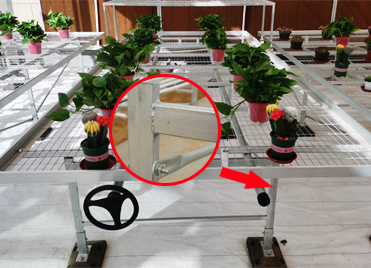

6.A roller tube is installed between the seedbed surface and the support, allowing the seedbed surface to move 30cm left and right, greatly utilizing the greenhouse space.
Application Scenarios

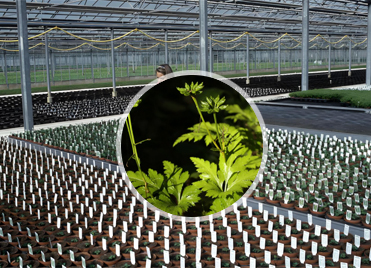

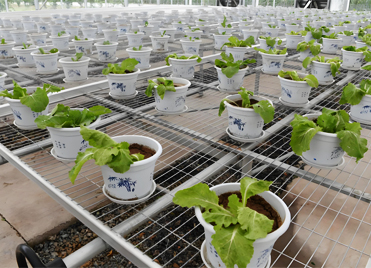

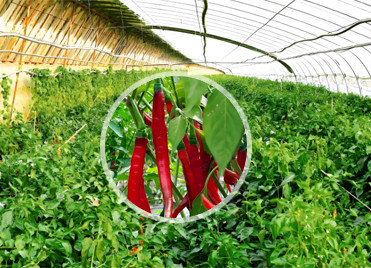

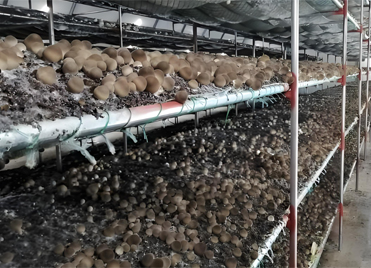

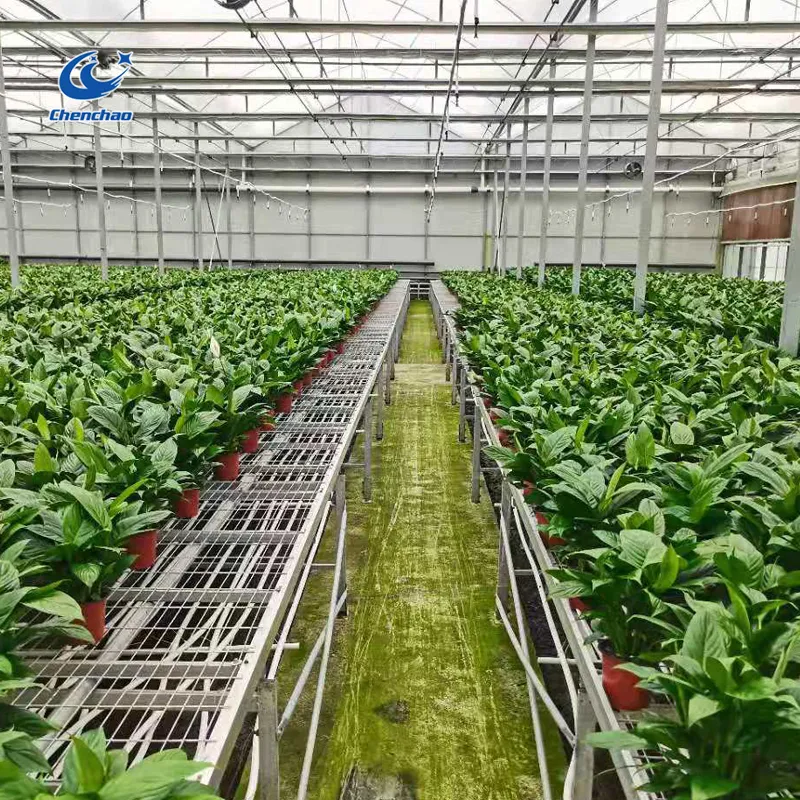

Electric welding mesh seedbed has a wide range of application scenarios, with significant protective and healthy growth effects in vegetable seedling cultivation, flower planting, fruit, Chinese herbal medicine, mushroom and other plant cultivation stages, and is also very suitable in teaching and research fields.
Factory Advantage

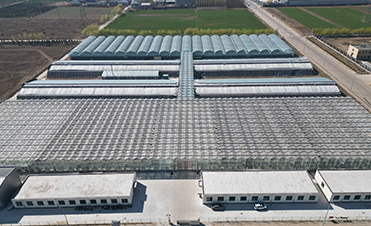

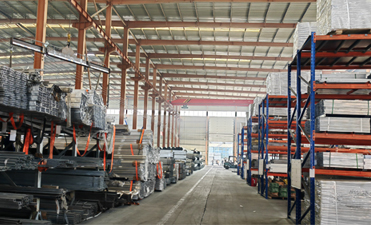

Hebei Chenchao Company is located in Hebei Province, China. It is a terminal service provider specializing in comprehensive solutions for greenhouse seedbeds, greenhouse equipment, greenhouse construction, and operation. The factory has nearly a hundred scientific research talents and ranks among the top in the industry in terms of warehousing throughput. All of its products strictly comply with the ISO international system standards, which not only have a wide range of applications, strong practicality, and high durability, but also provide multiple solutions, receiving high praise from the industry. At the same time, the company also undertakes OEM and ODM orders at home and abroad, and is widely praised for its reputation and delivery.
Certificate of Honor
Chenchao Company has won numerous industry awards and authoritative certifications with its high standard production technology, strong warehousing and delivery capabilities, and high-quality solution services.
Cooperate
The recognition and long-term cooperation of customers cannot be separated from Chen Chao Company's persistence and meticulous cultivation in the field of greenhouse agriculture.
Delivery and Transportation
Chenchao Company is equipped with professional seedbed design and development personnel, customs personnel, and greenhouse construction project personnel. From the appearance of your order to final delivery, from the factory to the port, every link is strictly controlled. There are various transportation methods available for goods, including air, rail, air, and sea freight. When your order is generated, we have carried out a series of high standard delivery tasks to make customers feel more at ease and have a pleasant cooperation.
FAQ
Q1: Are you a factory or manufacturer?We are a Chinese origin factory and can accept orders of any model or specification.Q2: What is the after-sales warranty policy for the product?For products shipped from our factory that are not damaged due to human factors, they can be exchanged within 3 months and returned within 6 months. If the problem is not resolved within 1 year, we will provide corresponding compensation to the customer.Q3: What is the minimum order quantity for the factory?Accessories are generally available in full containers or starting from 10 cubic meters, and customized products should not be less than the volume of a standard 20/40/45 foot container.Q4: How long is our production leading time?Within 30days upon receive deposit in normal season, and around 40 days in our busy time . (Also Depends on the number of products and the complexity of the process.)Q5: Where is your factory located? Can we do customized design?Our factory is located in Raoyang High tech Development Zone, Hengshui, China. We provide OEM and ODM services, and you can show us your design drawings and solution content.Q6: Transportation mode?A:Loading Port: Mainly loaded at Tianjin Port in China or Qingdao Port in Shandong Province B :Transportation service: sea freight. Due to the heavy weight and irregular size of the finished product packaging, it is not possible to deliver the furniture to your location by air freight/express delivery. Sea freight is the only delivery method.Q7: What can I do if the item damaged during transportation?Our customer service staffs will help you with any questions or concerns. Under any circumstance, we will take well packed products pictures before shipping. So if any damage on products,please take pictures for us.Q8:Why did I choose your Chenchao company?There are three advantages to choosing to cooperate with us: 1. Chenchao Company has a strong research team, which can better facilitate the complete implementation of the project; 2. Chenchao Company has strong production and warehousing capabilities and accepts customized products of any specification; 3. Chenchao Company has a better reputation and after-sales service, with successful experience and numerous solutions in delivery, pre-sales support, drawing design, greenhouse soil, and park operation.Q9:Does the company accept cash on delivery and letter of credit transactions?At present, the company only accepts two methods of settlement: factory delivery settlement and domestic port settlement.Q10:What products and services does your company offer?Our factory has been committed to the research and implementation of integrated products for greenhouse agriculture, including Greenhouse fences, seedbeds, Seedling trays, planting troughs, picking trucks, energy-saving  irrigation systems,  planting  lamps,  integrated  water and fertilizer machines  and  other  agricultural  facilities.  We  also   provide  intelligent  agricultural  integrated solutions  that  combine   modern  and  efficient  greenhouse   planting,   ensuring  high  economic means such as stable production, pest resistance, energy conservation, and controllability.
